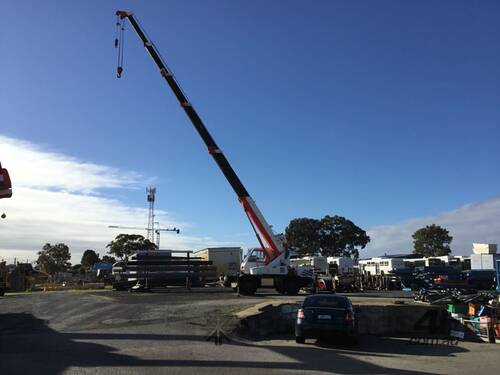

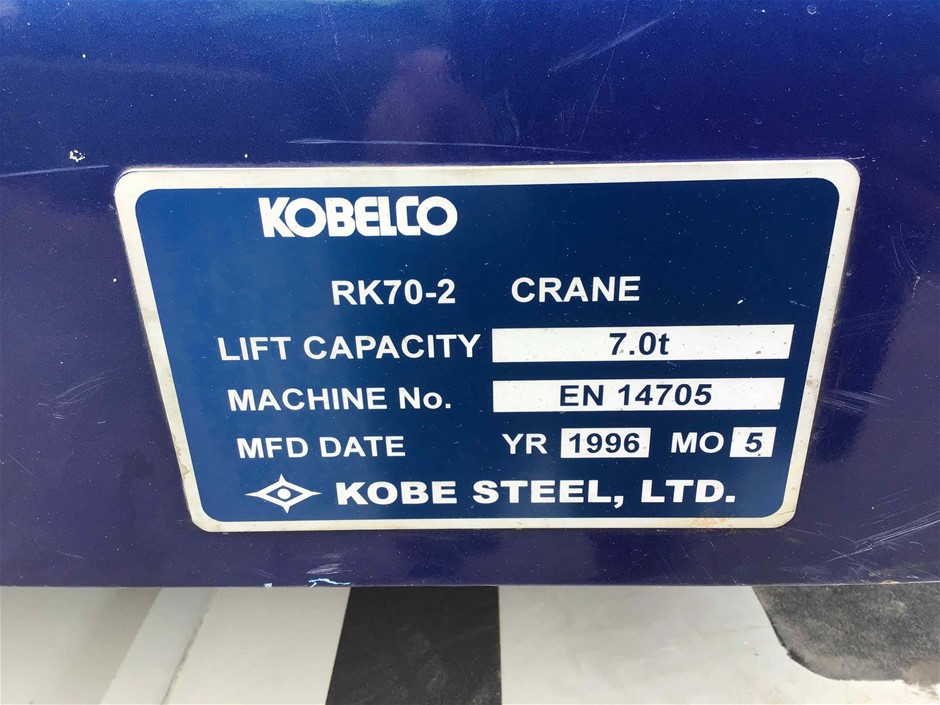

| Specifications for 7t Kobelco Telescopic crane RK 70 | |
| Max. capacity: 7 t at 1 m | Max. loadmoment: - tm |
| Axles: 2 | Total weight: 11,5 t |
| Booms: | |
| Telescopic boom: 5,12-21,2 m | Boom sections: 6 |
| Boom luffing up to: 80,5° in - seconds | Boom telescoping: 5,12-21,2 m in 50 seconds |
| Superlift: - | Intermediate sections: - m |
| Folding jib: - m offsettable at angle -° | |
| Fixed jib: - m offsettable at angle -° | Luffing jib: - m |
| Main boom foot pin horizontal offset X: - mm | Main boom foot pin vertical offset Y: - mm |
| Max. slewing speed: 2,5 rpm | |
| Dimensions: | |
| Total length: 6950 mm | Tail swing: 1560 mm |
| Carrier length: 5825 mm | Width: 1995 mm |
| Outer turning radius : - mm | Inner turning radius: - mm |
| Turning radius boom head: - mm | Turning radius folding jib: - mm |
| Outrigger base: 4660 x 4400 mm | Reduced outrigger base: 4660 x 1650 mm |
| Crawler track width: - mm | Crawler plate width: - mm |
| Drives & Transmission: | |
| Carrier engine: Isuzu 4BD1 | Power/Weight-Ratio: 0.00 kW/t |
| Power: - kW / 140 PS | Max. torque: 340 Nm 1900 rpm |
| Transmission: Automatikgetriebe | Gears: 10+1 (Forward + reverse) |
| Max. speed: 49 km/h | Gradeability: 62 % |
| Drive / Steering (standard): 4x4x4 | Drive / Steering (option): - |
| Tyres (standard): 10.00-20 PR14 | Tyres (option): 275/80 R22.5 |
| Superstructure engine: - | |
| Power: - kW / - PS | Max. torque: - Nm at - rpm |
| Counterweight: | |
| Derrick mast: - m | Radius A-frame: - mm |
| Max. counterweight: - t | Central ballast (Crawler cranes): - t |
| All crane specifications given are for reference only. This is no sales offer! | Brochure version: n/a |
